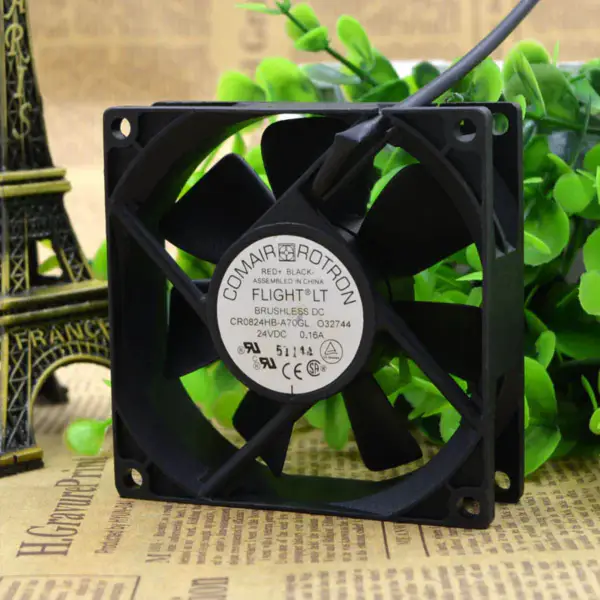

Comair Rotron CR0824HB-A70GL – axiaalventilator, 80x80x25mm 24V DC. Nominaal toerental 3010 RPM, maximale luchtstroom 38,6 CFM.
| Merk | Comair Rotron |
| Model | CR0824HB-A70GL |
| Ventilatortype | Axiaal |
| Serie | AD8025 |
| Framegrootte (B x H x D) | 80 x 80 x 25 mm |
| Nominale spanning | 24 V |
| Stroomtype | DC |
| Nominale stroom | 0,16 A |
| Opgenomen vermogen | 3,84 W |
| Toerental | 3010 RPM |
| Max. luchtstroom | 38,6 CFM / 65,6 m³/h |
| Max. statische druk | 39,9 Pa |
| Geluidsniveau | 34,4 dB(A) |
| Lager | Kogellager |
| Aansluitdraden | 2 |
| Gewicht | 86 g (0,19 lb) |
| Ventilatorspecificaties | |
| Merk | Comair Rotron |
| Framegrootte | 80 x 80 mm |
| Dikte | 25 mm |
| Nominale spanning | 24 V |
| Voedingstype | DC |
| Ventilatortype | Axiaalventilator |
| Luchtstroom | 30–60 CFM |
| Toerental | 2,500–3,500 RPM |
| Nominale stroom | 0.1–0.25 A |
| Aansluiting | 2-draads |
| Lager | Kogellager |
